Amino Linker C7

picture of Amino Linker C7

Modification : Amino Linker C7

Catalog Reference Number
Category
Modification Code
5 Prime
3 Prime
Internal
Molecular Weight (mw)
Extinction Coeficient (ec)
Technical Info (pdf)
Absorbance MAX
Emission MAX
Absorbance EC



26-6406
End Modifiers
AmC7
N
Y
N
209.18
-
PS26-6406.pdf
-
-
-


Catalog NoScalePrice
26-6406-0550 nmol$45.00
26-6406-02200 nmol$45.00
26-6406-011 umol$58.50
26-6406-032 umol$87.75
26-6406-1010 umol$468.00
26-6406-1515 umol$585.00

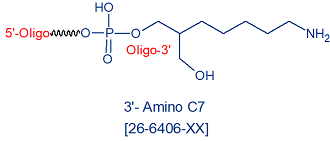

Amino Linker C7 can be used to incorporate an active primary amino group onto the 3-end of an oligonucleotide followed by conjugation to the desired NHS activated ligand. The amino C7 thus becomes internal to the 3' end conjugated ligand. The amino group is separated from the 3-end nucleotide base by a 7-carbon spacer arm to reduce steric interaction between the amino group and the oligo.
The presence of the primary amino group allows the user to label the oligo with a variety of different ligands for affinity, reporter or protein moieties (as NHS esters or isothiocyanates), depending on the application. Examples include biotin, digoxigenin, and fluorescent dyes or quenchers, magnetic beads and enzymes (for example, alkaline phosphatase).



-

The primary amine labelled oligos can also be conjugated to carboxyl functional groups usually for solid supports applications using EDC mediated reaction as shown in the figure below.



- Amino Linker C7
